Ruedamann® Loading Ramp with Aluminum Ramp 1 Piece(Raised Grain Non-Skid)
Ruedamann® Loading Ramp with Aluminum Ramp 1 Piece(Raised Grain Non-Skid)
- 10% OFF Available to Sitewide!
Couldn't load pickup availability

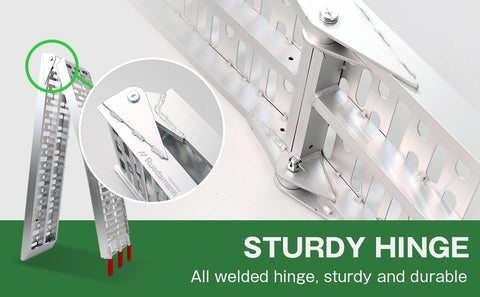

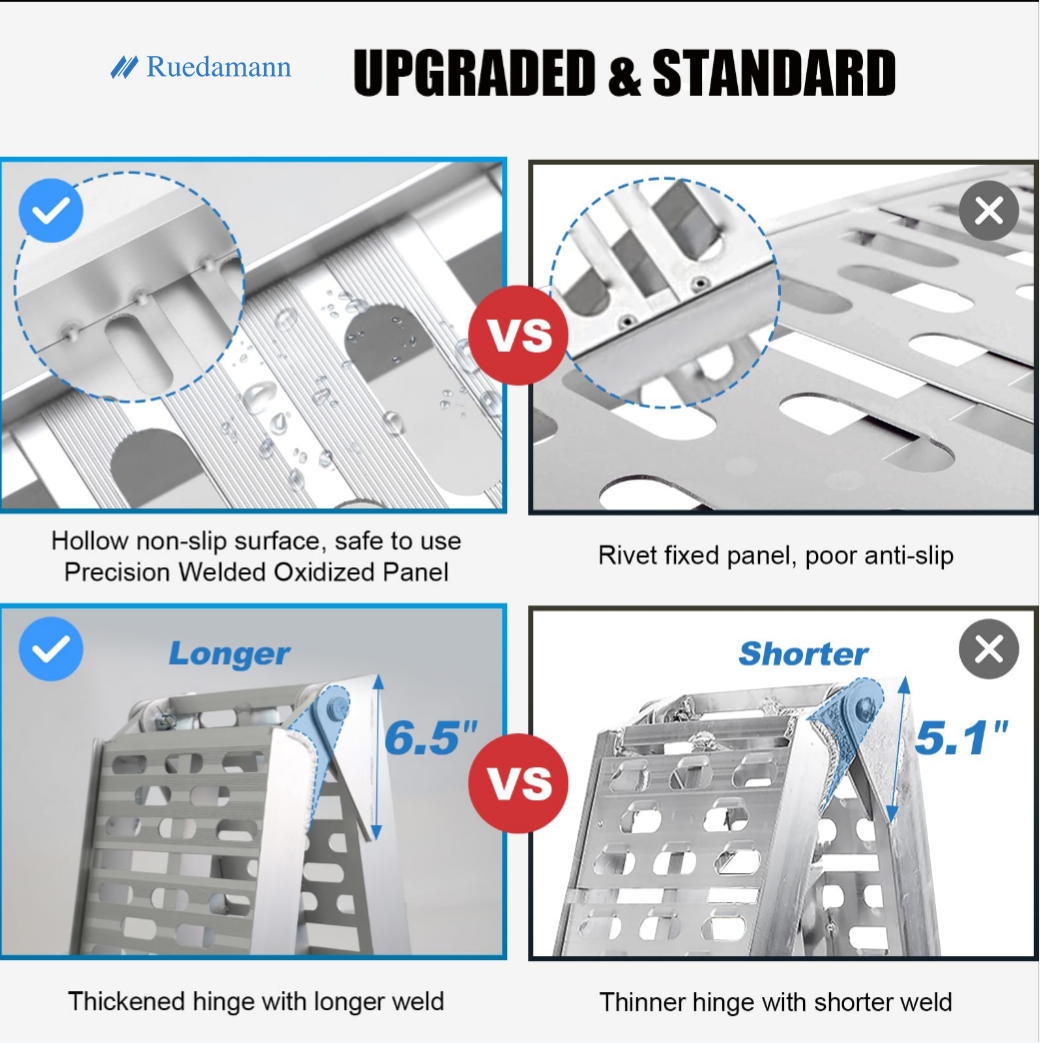

【Perfect for Loading & Unloading】The loading ramp is made of aluminum which makes it long lasting and is lightweight with a weight of about 17.6 lb (8kg) only. This ramp can be used for both loading and unloading endless times without any hassle of it getting glitched as its made of heavy duty welded hinges, joints and crossbars. The hinges are 2.8 inches (7cm) in length which makes it 1 inch (2.5cm) longer than normal commercial ramps giving a safer loading experience.
【Exclusive Construction】There are 3 fingers on the top surface of the loading ramp to help the vehicle from slipping off giving a more secure & reliable pick up. The soft tipped design also cuts down scraping between your ride and the ramp.

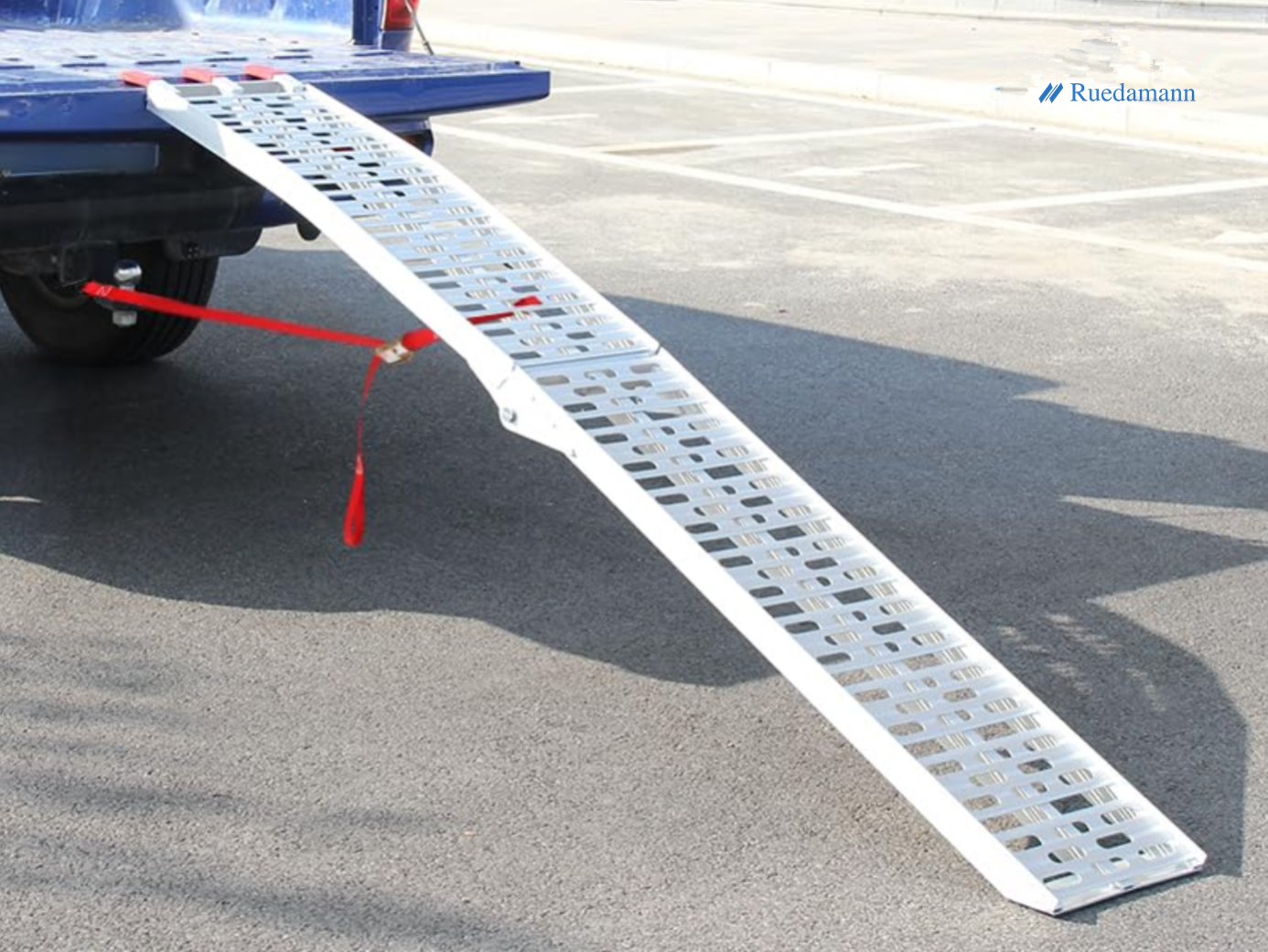

【Heavy Duty& Safe】The ramp comes with heavy duty loading straps to securely fasten the ramp on to the tailgate to avoid movement hence you don't have to worry about buying the straps separately. While loading & unloading please don't ride the vehicle. Aluminum alloy has high hardness, toughness and resilience, please use it with confidence.
【Track Dimension】The foldable size of the ramp is 45.4 inches x 11 inches x 5.7 inches (115 x 28 x 14.5cm) and the unfolded size of the ramp is 87.6 inches x 11 inches x 2 inches (222.5 x 28 x 5cm) giving it a larger suction capacity to load hassle free. Our suggestion of height to be used is 25.6 inches (65cm). Suitable for vehicles with tires section width less than 10" (250mm). Before purchasing, please make sure that our product size is suitable for the place you want to use.
【Resourceful Usage】This ramp is not only suitable for wide range of motorcycles and off-road vehicles, but also large garden tools, lawn mower, trailers, tractors, ATV & UTV and many more.
Collapsible content
Shipping
We will deliver the goods within 24 hours after receiving the payment, except for weekends and holidays.Normally, delivery to the lower 48 states of the United States usually takes 3-7 working days（except special circumstances）.
Return
Returnable within 30 days.Return Policy
Warranty
Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.
Contact
Whatever you need, wherever you are, we're happy to help you.
Your message will be sent to our customer service center. We will respond to you as soon as possible.
How to choose a ramp?
Ruedamann wheelchair ramps are one of the best-selling mobility ramps in the United States and are widely used in the commercial, transportation industry, healthcare and nursing home industries, and private individuals. We know you may also be wondering how to choose the best ramp, so we’ve created this guide to help ensure you get the best ramp for your purposes.
1. First you need to measure the steps, stairs, thresholds, curbs, vehicles, etc. where the ramp will be placed:
(1) Measure the total vertical height from the ground to where the ramp is placed, which we call the "vertical height". (See below)
(2) Measure the total length of the steps to ensure the ramp is long enough to overcome the steps. (See below)
2. Understand the slope ratio.
Common slope ratios are: 1:4; 1:6; 1:8; 1:10 (see the figure below).
For manual wheelchairs, our recommended slope ratio is 1:6. For example, for a 1 cm rise (vertical height) you will need a 6cm long ramp. If you have a larger space for the ramp, you can buy a longer ramp than recommended as this means you will have less effort and easier going up and down the steps. Note: 1:4 is the maximum height.
3. We also recommend checking the threshold and whether there is any height inside the steps.
For situations where the interior height is low, bridge-type sill ramps are often the perfect solution.
4. Choice of width.
Your ramp should be wide enough to accommodate your wheelchair/scooter, but narrow enough to accommodate your threshold. For this reason, we offer a range of widths for you to choose from.
Our normal folding ramps are 72cm wide, and we also offer extra-wide folding ramps with a width of 85cm. Telescopic ramps require you to check whether the tire width of the wheelchair or scooter you are using exceeds the inner width of the telescopic ramp. The inner width of our telescopic ramps is in the range of 15-25cm.
Note: Since the side height of all telescopic ramps is 5cm, the chassis height of the wheelchair must be greater than 5cm. If the bottom of the chassis is too low, the wheelchair will get stuck on the side tubes of the ramp.
