Ruedamann® 67" x 8.7" Steel Loading Ramps Kit for DIY Install 1 Pair
Ruedamann® 67" x 8.7" Steel Loading Ramps Kit for DIY Install 1 Pair
- 10% OFF Available to Sitewide!
Couldn't load pickup availability

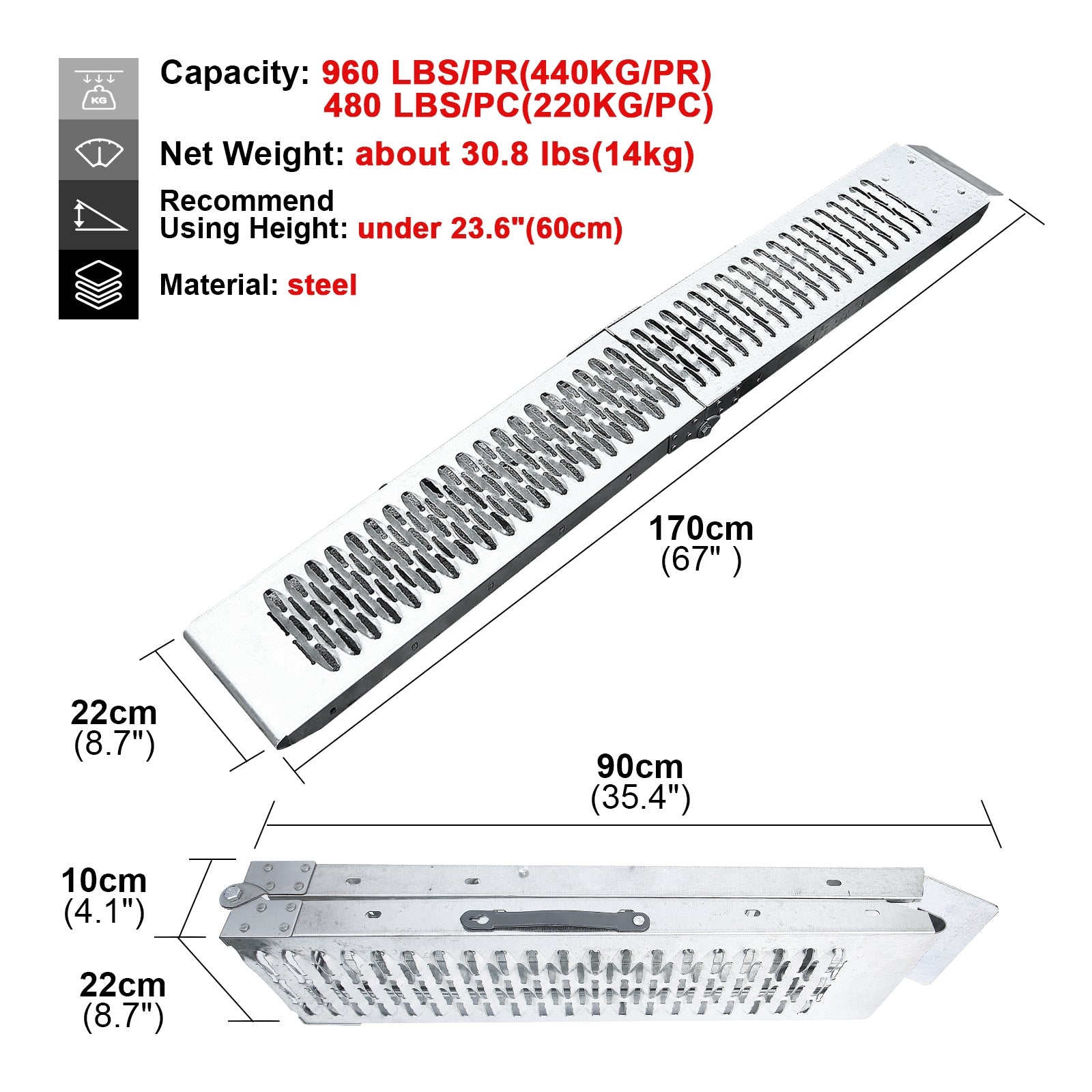

【Unfolding size of loading ramp】67'' x 8.7'' x 1.9''(170cm*22cm*4.7cm). Folding size: 35.4'' x 8.7'' x 4.1''(90cm*22cm*10.5cm).Convenient for storage in our home and easy to carry out by our car, saving lots of space. Note: Please wear gloves when using.The recommended height range is 16.7"-19"(42cm-48cm).
【Convenient】The side handle is fixed on one side. After retracting the ramp, The hole on the tension strap can be used as a handle through the raised lock on the other side, which is convenient to carry the ramp.

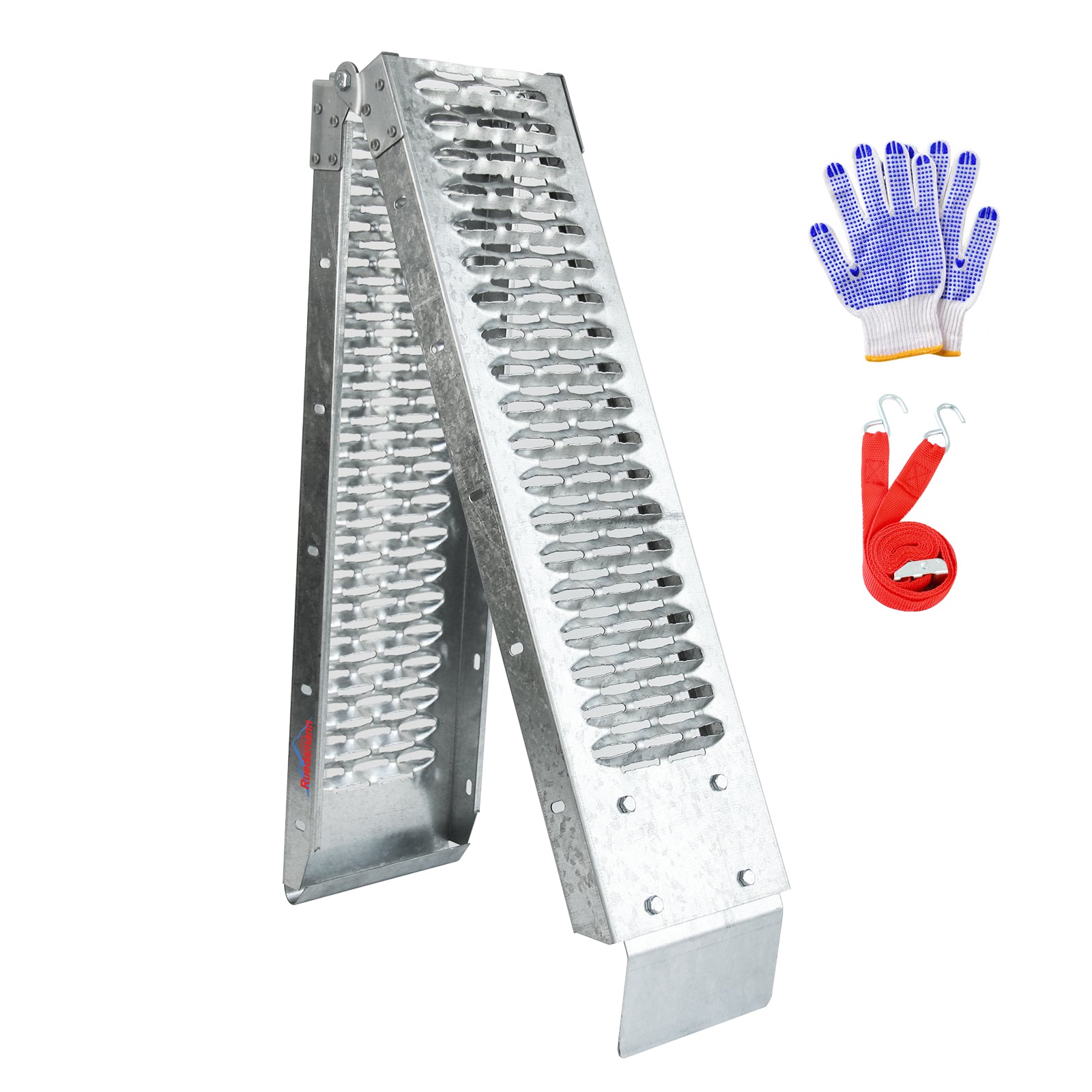

【Packaging Components】 2 loading ramps, 2 top support ramp kits, 8 mounting screws, 8 mounting nuts, 8 flat washers and 8 lock washers.After getting the heavy duty steel loading ramp, taking out all the accessories and install the top support ramp kit on the loading ramp. The sequence of washers is: install flat washer first and then lock washer.Confirm that the installation is firm before using the ramp.
【Anti-skid 】The anti-skid design on the surface of the loading ramp can form strong traction and friction on the ramp surface. The back of the topboard is provided with EVA anti-skid pads, which can not only prevent the car from being scratched, but also form a certain friction force with the car to prevent slipping and falling.

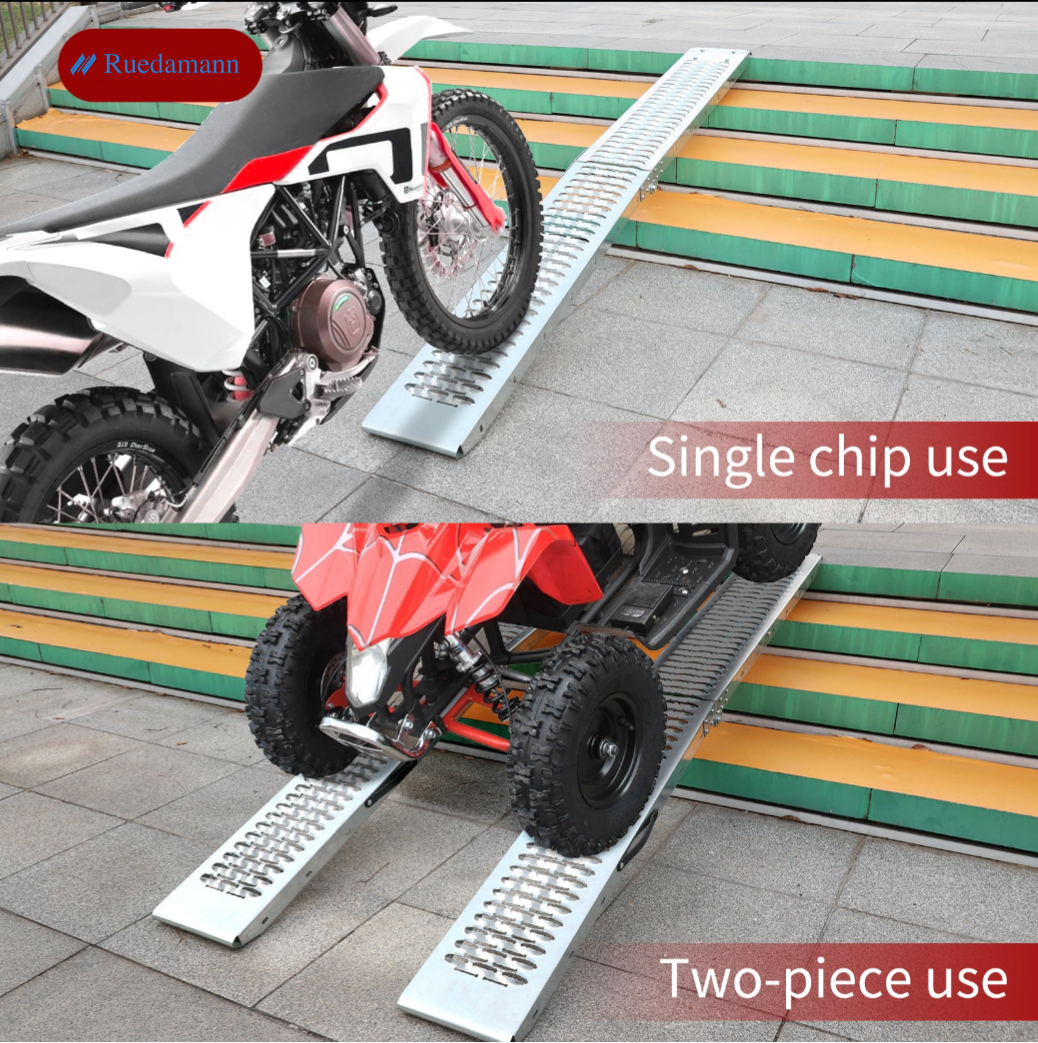

【load-bearing capacity 】The heavy duty steel loading ramp weighs about 15.4 lbs(7kg)/PC and the load-bearing capacity can reach 480 lbs(220kg)/PC. The load-bearing capacity of two pieces using together can reach 960 lbs(440kg).That can load motorcycles, lawn mowers, ATVs, trucks, snowmobiles, trailers and etc.Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.
Collapsible content
Shipping
We will deliver the goods within 24 hours after receiving the payment, except for weekends and holidays.Normally, delivery to the lower 48 states of the United States usually takes 3-7 working days（except special circumstances）.
Return
Returnable within 30 days.Return Policy
Warranty
Warranty period of our ramp is 1-year, artificial damage is not within the warranty period.
Contact
Whatever you need, wherever you are, we're happy to help you.
Your message will be sent to our customer service center. We will respond to you as soon as possible.
How to choose a ramp?
Ruedamann wheelchair ramps are one of the best-selling mobility ramps in the United States and are widely used in the commercial, transportation industry, healthcare and nursing home industries, and private individuals. We know you may also be wondering how to choose the best ramp, so we’ve created this guide to help ensure you get the best ramp for your purposes.
1. First you need to measure the steps, stairs, thresholds, curbs, vehicles, etc. where the ramp will be placed:
(1) Measure the total vertical height from the ground to where the ramp is placed, which we call the "vertical height". (See below)
(2) Measure the total length of the steps to ensure the ramp is long enough to overcome the steps. (See below)
2. Understand the slope ratio.
Common slope ratios are: 1:4; 1:6; 1:8; 1:10 (see the figure below).
For manual wheelchairs, our recommended slope ratio is 1:6. For example, for a 1 cm rise (vertical height) you will need a 6cm long ramp. If you have a larger space for the ramp, you can buy a longer ramp than recommended as this means you will have less effort and easier going up and down the steps. Note: 1:4 is the maximum height.
3. We also recommend checking the threshold and whether there is any height inside the steps.
For situations where the interior height is low, bridge-type sill ramps are often the perfect solution.
4. Choice of width.
Your ramp should be wide enough to accommodate your wheelchair/scooter, but narrow enough to accommodate your threshold. For this reason, we offer a range of widths for you to choose from.
Our normal folding ramps are 72cm wide, and we also offer extra-wide folding ramps with a width of 85cm. Telescopic ramps require you to check whether the tire width of the wheelchair or scooter you are using exceeds the inner width of the telescopic ramp. The inner width of our telescopic ramps is in the range of 15-25cm.
Note: Since the side height of all telescopic ramps is 5cm, the chassis height of the wheelchair must be greater than 5cm. If the bottom of the chassis is too low, the wheelchair will get stuck on the side tubes of the ramp.
5. Contact us.
If the above article does not answer your questions, please contact us with your questions.
